Holy MauiGraphics Batman! Part 1: Batmobile Throttle Control

“Here’s what we’ll build”

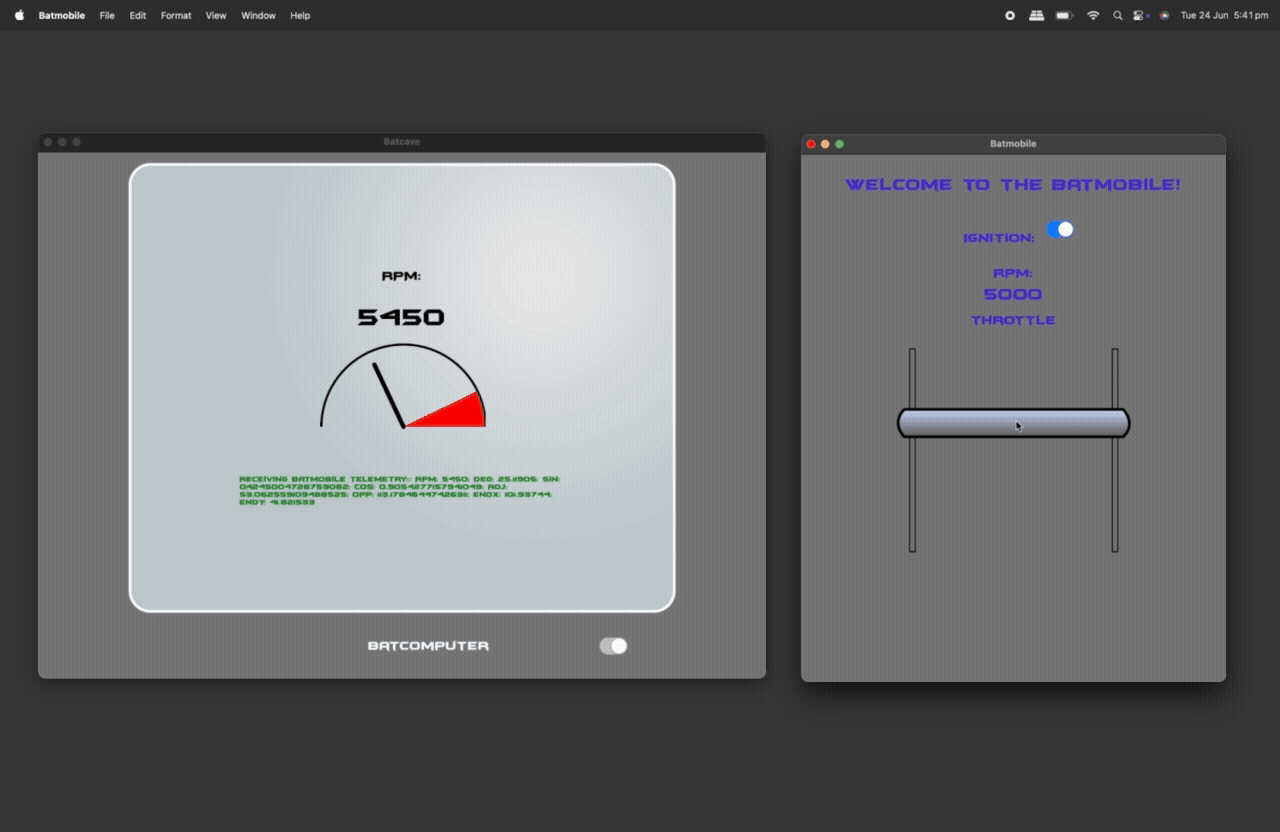

Here's what we're going to build

Welcome to MAUI UI July 2025! In this post, we’re building a custom throttle control using .NET MAUI and IDrawable from MauiGraphics. This is part of a retro-futuristic Batmobile telemetry system that includes both input (throttle) and output (RPM dashboard), connected over gRPC. In part 1 we’ll focus the input side: the throttle UI Batman uses to control the beast. Tomorrow we’ll dive into the output side: an RPM gauge rendered on the BatComputer.

This project was originally developed as part of my book but didn’t make the final cut, so I’ve resurrected it here with some upgrades and insights.

Stick around for parts 2 and 3 covering the rest of the UI, and a bonus part 4 covering the gRPC aspects (not part of MAUI UI July). If you can’t wait, and just want to see the code, the full solution is on GitHub. The code contains detailed comments reflecting the detail provided here.

MauiGraphics Basics

The main MauiGraphics interface we use is IDrawable, which defines the Draw method used to render graphics on screen.

1
2
3
4
5
6
7
public class MyDrawable : IDrawable
{
    public void Draw(ICanvas canvas, RectF dirtyRect)
    {

    }
}

The Draw method accepts two parameters: ICanvas and RectF. The ICanvas represents the surface we’re going to render our graphics onto. The RectF provides information about the surface that canvas is on (like size and location) which can be used to adjust what we draw. In this series I only use the canvas and not the dirtyRect.

ICanvas exposes properties and methods for drawing on screen — like setting stroke color, defining paths, and rendering shapes. I’m not covering the full API here, just what I used to build the Batmobile. You can refer to the documentation for more — or better yet, browse the sample code, which shows several use cases as well as how to use them.

The Throttle UI

The throttle consists of three parts:

  1. Two vertical rails
  2. A sliding handle
  3. Drag logic and RPM binding

Each component is rendered using IDrawable objects and combined in a ContentView.

The rails are rendered using an IDrawable (in the ThrottleRails class), the handle is another IDrawable (in the ThrottleHandle class), and a ContentView (the Throttle class) combines them and handle the logic for dragging the handle and a bindable property for the RPM value.

Let’s break it down.

Drawing the Rails

In the Draw method, we begin by defining the stroke color and size:

1
2
canvas.StrokeColor = Colors.Black;
canvas.StrokeSize = 2;

Graphically, this control is two vertical rails, each defined as a simple rectangle path. So, we add a PathF object and use that to describe a rectangle, then pass it to the DrawPath method of the ICanvas:

1
2
3
4
5
6
7
8
9
10
11
12
13
path.MoveTo(60, 40);
path.LineTo(60, 410);
path.LineTo(70, 410);
path.LineTo(70, 40);
path.Close();
canvas.DrawPath(path);

path.MoveTo(430, 40);
path.LineTo(430, 410);
path.LineTo(440, 410);
path.LineTo(440, 40);
path.Close();
canvas.DrawPath(path);

This draws two rectangles:

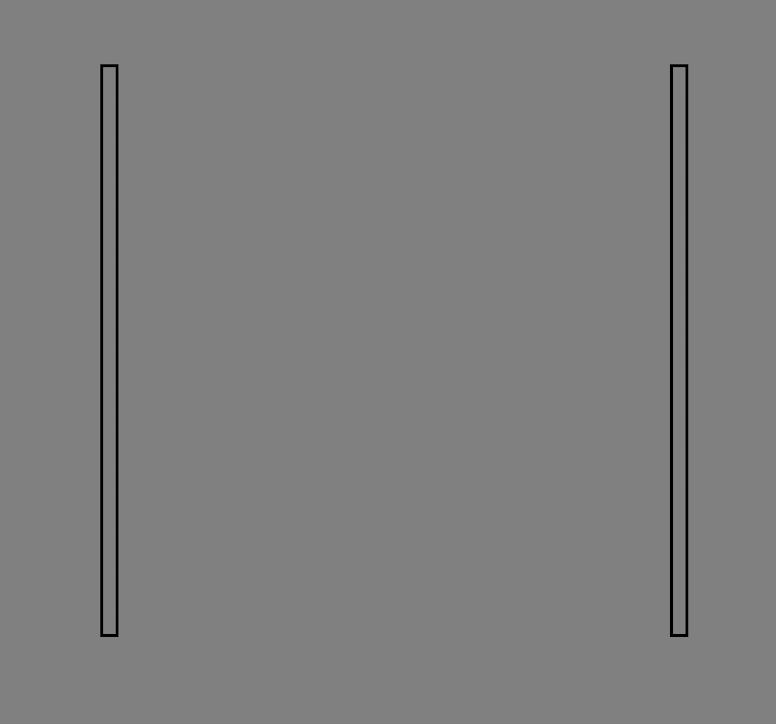

The paths we've defined create two vertically oriented rectangles

If you think of it like a robot holding a pen, MoveTo is used to move the pen to a position without drawing anything. This is how we’re able to use the same path object for two disconnected rails. Note also that LineTo (and other methods that create drawn geometry) don’t actually render on the canvas; the whole path object only describes the geometry while the ICanvas renders it itself.

If you’ve ever peeked under the hood of an SVG file (or you know how the format works), it’s very similar; in fact the MoveTo, LineTo, and CurveTo (which we’ll see next) are directly analogous to the M, L, and C SVG commands.

Note: it would have been much simpler to draw rectangles than paths, and all of the above code could be achieved in two lines. But I used this long-hand approach to demonstrate the concepts of moving and drawing.

Drawing the Handle

The handle is a rounded capsule shape filled with a vertical gradient. Rather than define the gradient in the Draw method we can define it as a static property of the class. This saves it being instantiated in every frame and is a little more GC friendly.

1
2
3
4
5
6
7
private readonly LinearGradientPaint gradient = new LinearGradientPaint
{
    StartColor = Color.FromRgb(103, 103, 103),
    EndColor = Color.FromHsv(226, 18, 100),
    StartPoint = new Point(0.5, 1),
    EndPoint = new Point(0.5, 0)
};

In the Draw method we start out by defining the stroke and outline:

1
2
3
4
5
6
7
8
9
10
11
canvas.StrokeColor = Colors.Black;
canvas.StrokeSize = 5;

var path = new PathF();

path.MoveTo(50, 50);
path.LineTo(450, 50);
path.CurveTo(new PointF(470, 50), new PointF(470, 100), new PointF(450, 100));
path.LineTo(50, 100);
path.CurveTo(new PointF(30, 100), new PointF(30, 50), new PointF(50, 50));
path.Close();

This time, instead of just using lines, we’ve added curves to the mix too. The CurveTo method let’s us define a Bézier curve with two control points and the end point, with the start at the current location on the path (in these examples, the coordinates defined in the preceding LineTo calls).

Next we define a rectangle to hold the gradient background:

1
2
var fillRect = new RectF(30, 50, 440, 50);
canvas.SetFillPaint(Gradient, fillRect);

Here we’re defining a rectangle to hold our gradient. You can see it extends from the leftmost tip of the curve on the left to the same on the other side - this would leave some corners sticking out, but we can use ClipPath to trim it down to the geometry we want before using a fill method (in this case FillRoundedRectangle) to paint the gradient.

1
2
canvas.ClipPath(path);
canvas.FillRoundedRectangle(fillRect, 12);

Probably worth pausing here to reflect on the importance of the order of operations. There’s a reason we use the canvas concept - every operation paints a layer on top of what’s already there. Operations like clipping don’t affect what’s already on the canvas.

Finally we draw the outline path - again, following the layering concept, this has to be done after the gradient, otherwise the gradient would cover it.

1
2
canvas.DrawPath(path);
canvas.SetShadow(new SizeF(10, -10), 4, Colors.Grey);

We also set a small shadow which helps the handle appear to be above the rails. This gives us the final result for the handle:

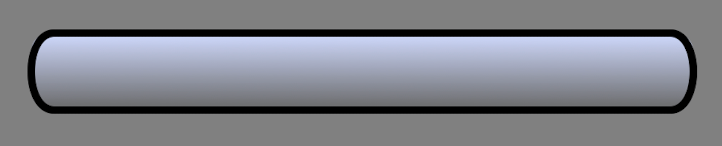

The throttle handle is an elongated capsule shape with an outline and gradient filling and a thick black outline

Layout and Gesture

Here’s how we compose the full control in XAML:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
<?xml version="1.0" encoding="utf-8" ?>
<ContentView xmlns="http://schemas.microsoft.com/dotnet/2021/maui"
             xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml"
             x:Class="Batmobile.Controls.Throttle"
             xmlns:draw="clr-namespace:Batmobile.Controls">
    <ContentView.Resources>
        <draw:ThrottleHandle x:Key="Handle"/>
        <draw:ThrottleRails x:Key="Rails"/>
    </ContentView.Resources>
    <ContentView.Content>
        <Grid HorizontalOptions="Center">
            <GraphicsView Drawable="{StaticResource Rails}"
                          x:Name="rails"
                          HorizontalOptions="Center"
                          WidthRequest="500"
                          HeightRequest="600"/>

            <GraphicsView Drawable="{StaticResource Handle}"
                          x:Name="handle"
                          VerticalOptions="Start"
                          HorizontalOptions="Center"
                          WidthRequest="500"
                          HeightRequest="200">
                <GraphicsView.GestureRecognizers>
                    <PanGestureRecognizer PanUpdated="ThrottlePanUpdated"/>
                </GraphicsView.GestureRecognizers>
            </GraphicsView>
        </Grid>
    </ContentView.Content>
</ContentView>

It’s fairly self-explanatory - the handle and rails are imported as resources and placed into a Grid so that they share the same 2D space (with no rows or columns defined, they’re both in the default of 0,0). Grid has the same conceptual layering as ICanvas, so adding the handle last renders it over the rails. A PanGestureRecognizer is attached so the user can drag it vertically.

Calculating RPM

In the event handler for the PanGestureRecogniser, we do two things. First, we adjust the position of the handle. We’ve got some guardrails (pun intended) to ensure it doesn’t move below the bottom or above the top of the rails, and we ignore the horizontal (x) component altogether.

1
2
3
4
5
6
7
8
9
10
11
private void ThrottlePanUpdated(object sender, PanUpdatedEventArgs e)
{
  if (e.TotalY > 0 && e.TotalY < 300 && IsEnabled)
  {
      handle.TranslationY = e.TotalY;
      Rpm = (int)e.TotalY * 50;  // 300px * 50 = 15000 max RPM
  }

  if (e.StatusType == GestureStatus.Completed || e.StatusType == GestureStatus.Canceled)
      Rpm = 0;
}

We calculate the RPM by mapping the Y translation directly to a value between 0 and 15,000 (the arbitrarily chosen max RPM of the Batmobile). As this is exposed by a bindable property, the main page gets notified of updates in realtime and streams the values over gRPC to the BatCave (more on this in part 4; note that part 4 is a bonus and not part of MAUI UI July).

Final layout

The throttle control is added to the main page, along with some other controls for enabling and disabling the gRPC stream (the ‘ignition’) and displaying information about the app (the title label) and the current RPM. The final result looks like this:

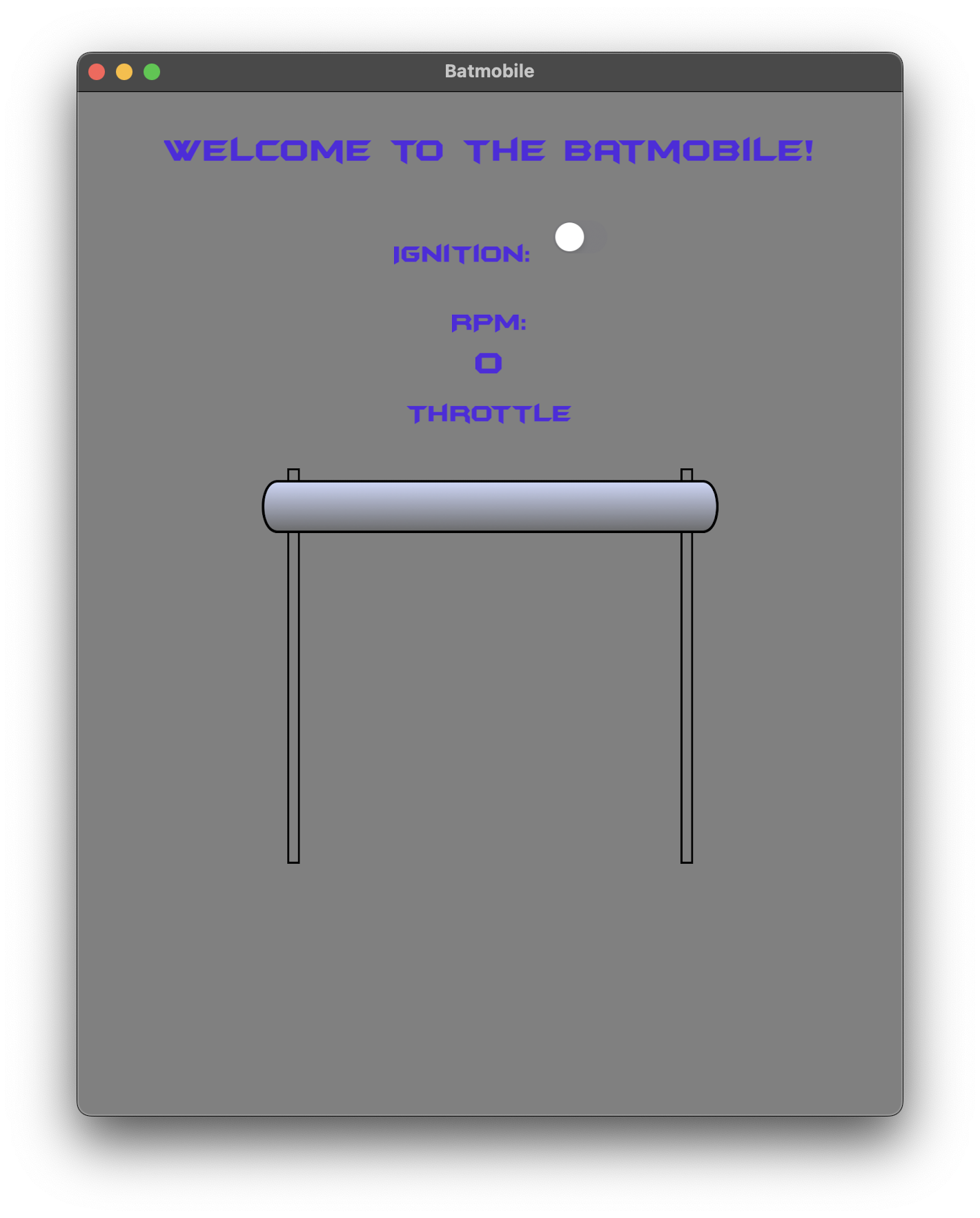

Batmobile final layout

The full code is in the repo, but it’s fairly vanilla - just standard .NET MAUI layouts and controls, with the Throttle control added to a VerticalStackLayout.

What’s Next

In Part 2, we’ll flip to the receiving end and build a dashboard-style RPM gauge that uses the same graphics primitives. If you enjoy trigonometry, custom drawing, and real-time telemetry, stay tuned.

If you can’t wait, you can find the full code on GitHub. Feel free to remix it, reskin it, or strap it into your own Bat-themed side project - and say tuned for a discussion of some of these in parts 3 and 4!
